JanusCoderV-8B is an 8B multimodal code-intelligence model from InternLM’s JanusCoder suite, built on InternVL-3.5-8B. Trained on JANUSCODE-800K, it unifies visual + programmatic inputs to generate and edit code for charts, interactive web UIs, and animation logic. It supports image-conditioned code generation, visual-grounded edits, and long outputs (demo shows max_new_tokens up to 32K) using standard Transformers (≥ 4.55.0) with AutoProcessor + AutoModelForCausalLM and remote code enabled.
Performance
| Model | JanusCoderV-8B | Qwen2.5VL-7B-Instruct | InternVL3-8B | InternVL3.5-8B | MiniCPM-V-2-6 | Llama3.2-11B-Vision-Instruct | GPT-4o |
|---|
| ChartMimic (Customized) | 74.20 | 58.69 | 60.04 | 59.55 | 48.18 | 39.63 | 67.42 |
| DesignBench (Gen) | 68.86 | 72.73 | 69.34 | 71.73 | 66.25 | 62.24 | 76.83 |
| DesignBench (Edit) | 8.63 | 6.85 | 7.76 | 8.63 | 4.56 | 6.61 | 9.23 |
| WebCode2M | 18.28 | 12.83 | 12.40 | 11.95 | 9.73 | 6.57 | 13.00 |
| InteractScience (Func.) | 17.60 | 8.40 | 8.93 | 11.47 | 0.13 | 6.67 | 27.20 |
| InteractScience (Visual) | 33.32 | 19.83 | 53.35 | 24.17 | 7.70 | 13.24 | 46.01 |
GPU Configuration
| GPU | VRAM | Recommended Load | Suggested Batch | Context (approx) | Images/Prompt | What to Expect |
|---|
| T4 | 16 GB | 4-bit (bnb), vision on GPU | 1 | 4–8K | 1 | Bare-minimum dev; slow decoding |
| L4 | 24 GB | 8-bit (bnb) or 4-bit; BF16 vision | 1–2 | 8–16K | 1–2 | Good for demos, light service |
| RTX 3060 | 12 GB | 4-bit (bnb) | 1 | 4–8K | 1 | Fits with tight cache; slower |
| RTX 3070 (8G) | 8 GB | 4-bit + offload | 1 | ≤4K | 1 | Only for experiments; very tight |
| RTX 3080 (10G) | 10 GB | 4-bit (bnb) | 1 | 4–8K | 1 | Similar to 3060; tight headroom |
| RTX 3090 | 24 GB | 8-bit (bnb) or 4-bit; BF16 vision | 2–3 | 8–16K | 1–2 | Solid single-GPU dev box |
| RTX 4080 | 16 GB | 8-bit (bnb) | 1–2 | 8–12K | 1 | Fast; watch KV cache growth |
| RTX 4090 | 24 GB | 8-bit (bnb) or FP16/BF16 w/ small ctx | 2–4 | 8–16K (FP16 with care) | 1–2 | Great workstation; good latency |
| RTX A4000 | 16 GB | 8-bit (bnb) | 1–2 | 8–12K | 1 | Stable, moderate throughput |
| RTX A5000 | 24 GB | 8-bit (bnb) or FP16 (tight) | 2–3 | 8–16K | 1–2 | Good for small services |
| RTX A6000 (48G) | 48 GB | FP16/BF16 full | 4–8 | 16–32K | 2–4 | Smooth long outputs; strong |
| L40 (48G) | 48 GB | FP16/BF16 full | 4–8 | 16–32K | 2–4 | Datacenter class; reliable |
| L40S (48G) | 48 GB | FP16/BF16 full | 6–10 | 16–32K | 2–4 | Faster than L40; great serving |
| A100 (40G) | 40 GB | FP16/BF16 full | 4–6 | 16–24K | 2–3 | Proven workhorse |
| A100 (80G) | 80 GB | FP16/BF16 + big KV | 8–12 | 32K+ | 3–5 | Long code outputs; high throughput |
| H100 (80G) | 80 GB | FP16/BF16 + big KV | 10–16 | 32K+ | 3–6 | Top-tier speed; great latency |
| H200 (141G) | 141 GB | FP16/BF16, huge cache | 16–24 | 64K+ | 4–8 | Extreme context/throughput |
| 2× 24–48G (e.g., 2×3090 / 2×A5000 / 2×A6000) | — | Tensor Parallel (TP=2), BF16 | 8–16 | 16–32K | 2–4 | Scale when single-GPU is tight |
| 2× 80G (2×A100/H100) | — | TP=2, BF16 | 16–32 | 32K+ | 4–8 | High-throughput production |
Resources
Link: https://huggingface.co/internlm/JanusCoderV-8B
Step-by-Step Process to Install & Run JanusCoder Locally
For the purpose of this tutorial, we will use a GPU-powered Virtual Machine offered by NodeShift; however, you can replicate the same steps with any other cloud provider of your choice. NodeShift provides the most affordable Virtual Machines at a scale that meets GDPR, SOC2, and ISO27001 requirements.
Step 1: Sign Up and Set Up a NodeShift Cloud Account

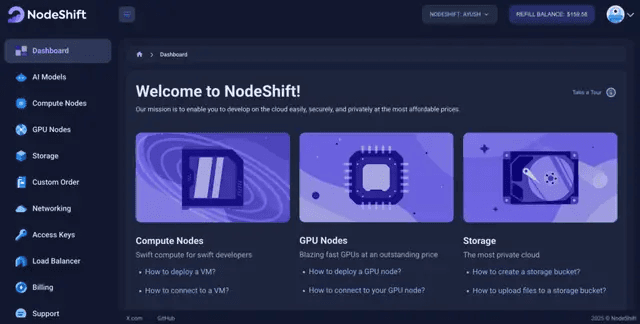

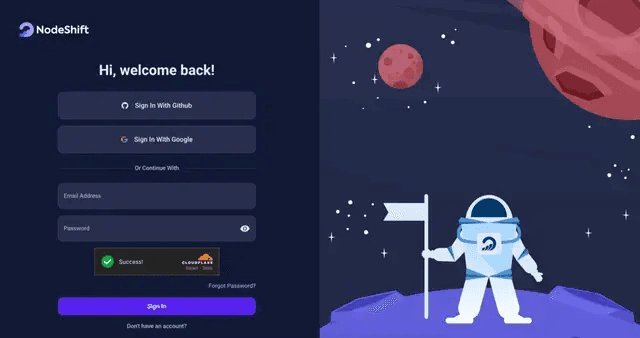

Visit the NodeShift Platform and create an account. Once you’ve signed up, log into your account.
Follow the account setup process and provide the necessary details and information.

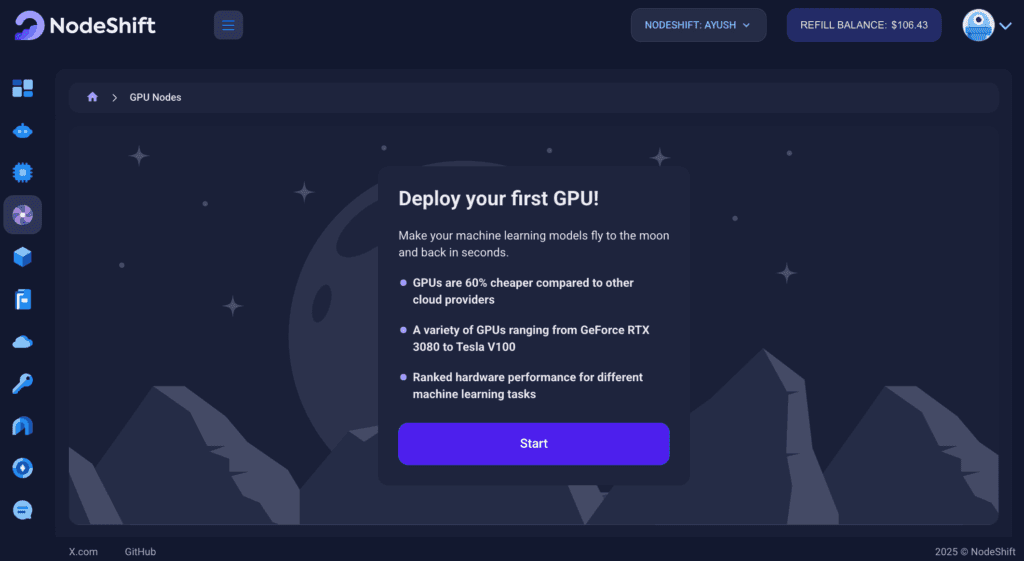

Step 2: Create a GPU Node (Virtual Machine)
GPU Nodes are NodeShift’s GPU Virtual Machines, on-demand resources equipped with diverse GPUs ranging from H200s to A100s. These GPU-powered VMs provide enhanced environmental control, allowing configuration adjustments for GPUs, CPUs, RAM, and Storage based on specific requirements.
Navigate to the menu on the left side. Select the GPU Nodes option, create a GPU Node in the Dashboard, click the Create GPU Node button, and create your first Virtual Machine deploy

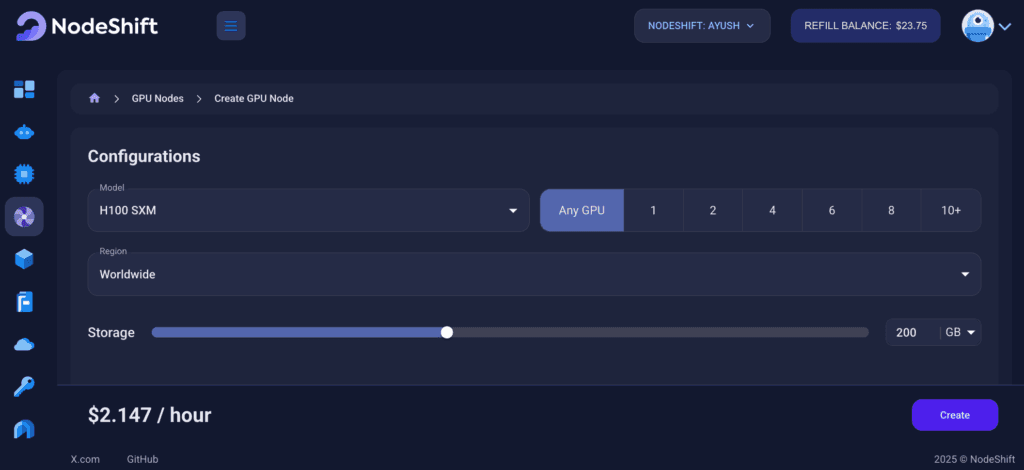

Step 3: Select a Model, Region, and Storage

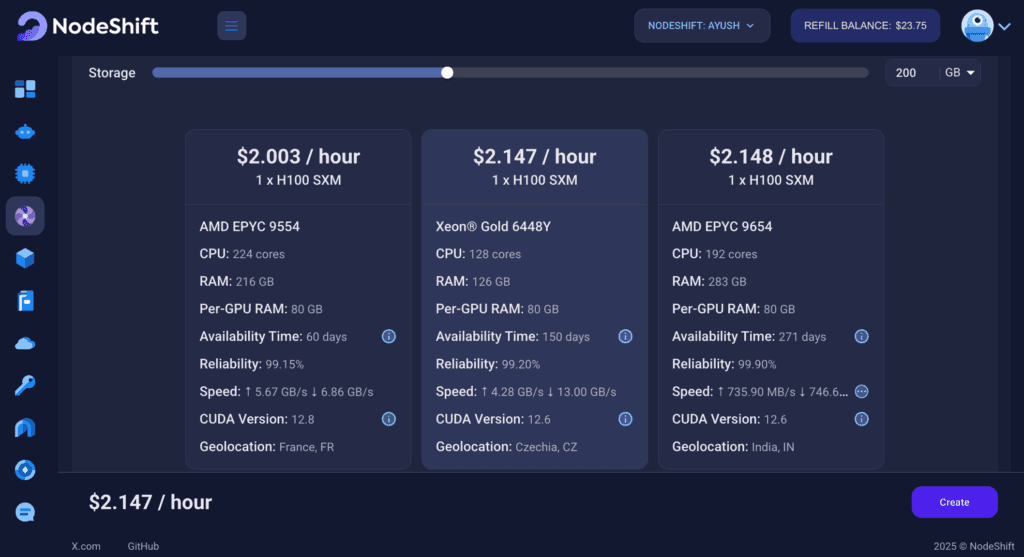

In the “GPU Nodes” tab, select a GPU Model and Storage according to your needs and the geographical region where you want to launch your model.
We will use 1 x H100 SXM GPU for this tutorial to achieve the fastest performance. However, you can choose a more affordable GPU with less VRAM if that better suits your requirements.

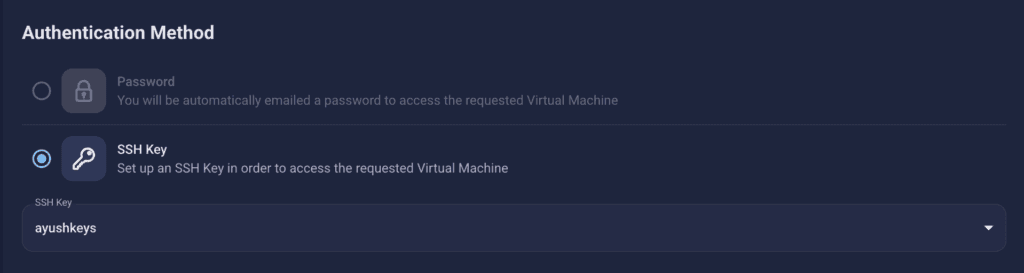

Step 4: Select Authentication Method
There are two authentication methods available: Password and SSH Key. SSH keys are a more secure option. To create them, please refer to our official documentation.

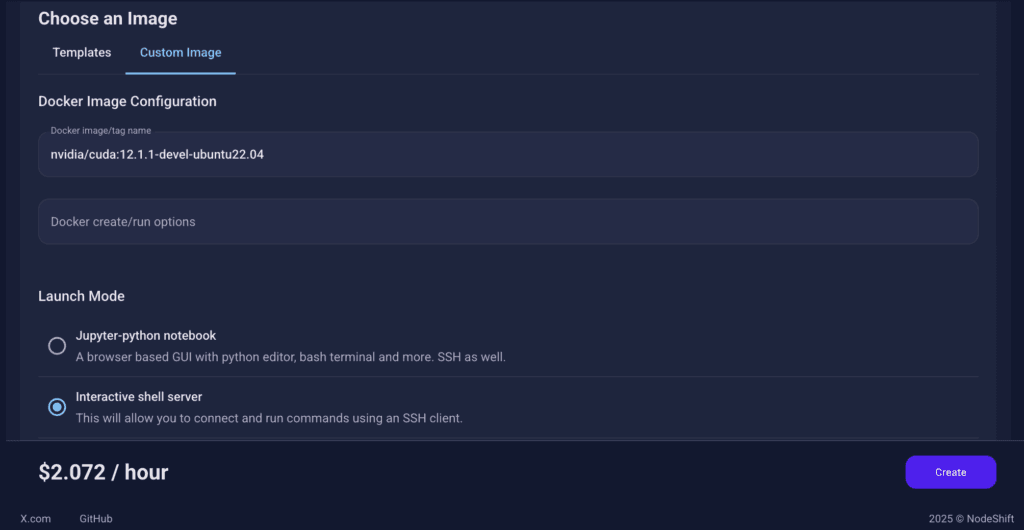

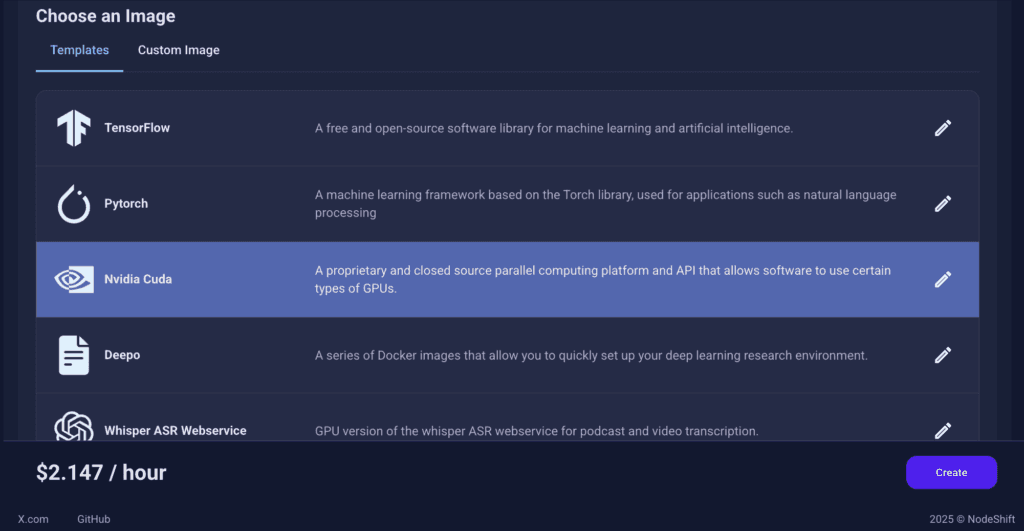

Step 5: Choose an Image
In our previous blogs, we used pre-built images from the Templates tab when creating a Virtual Machine. However, for running JanusCoder, we need a more customized environment with full CUDA development capabilities. That’s why, in this case, we switched to the Custom Image tab and selected a specific Docker image that meets all runtime and compatibility requirements.
We chose the following image:
nvidia/cuda:12.1.1-devel-ubuntu22.04
This image is essential because it includes:
- Full CUDA toolkit (including
nvcc)
- Proper support for building and running GPU-based models like JanusCoder.
- Compatibility with CUDA 12.1.1 required by certain model operations
Launch Mode
We selected:
Interactive shell server
This gives us SSH access and full control over terminal operations — perfect for installing dependencies, running benchmarks, and launching models like JanusCoder.

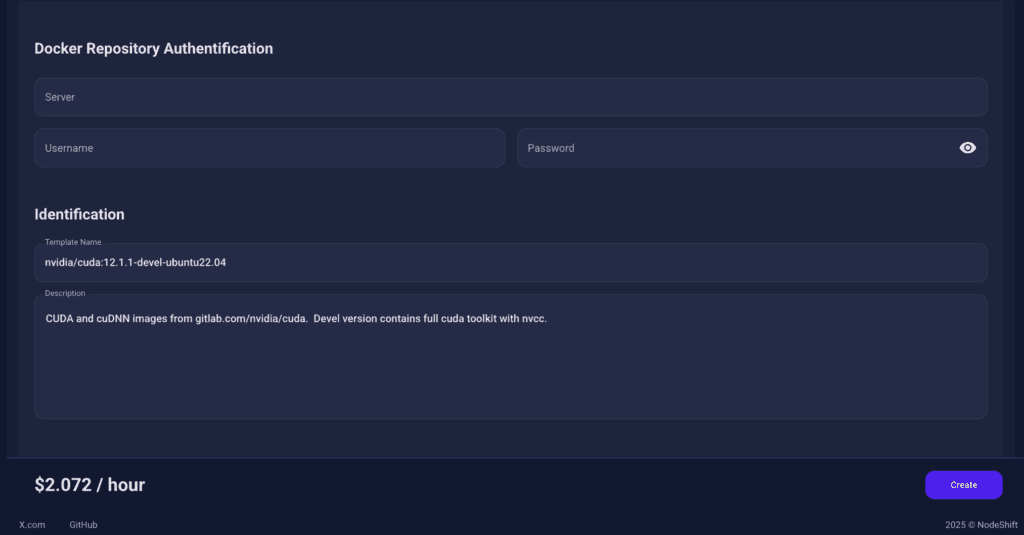

Docker Repository Authentication
We left all fields empty here.
Since the Docker image is publicly available on Docker Hub, no login credentials are required.
Identification
nvidia/cuda:12.1.1-devel-ubuntu22.04
CUDA and cuDNN images from gitlab.com/nvidia/cuda. Devel version contains full cuda toolkit with nvcc.
This setup ensures that the JanusCoder runs in a GPU-enabled environment with proper CUDA access and high compute performance.

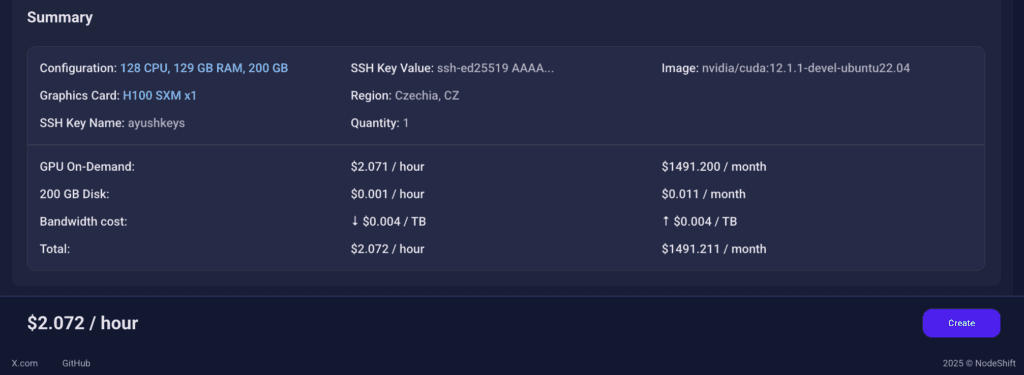

After choosing the image, click the ‘Create’ button, and your Virtual Machine will be deployed.

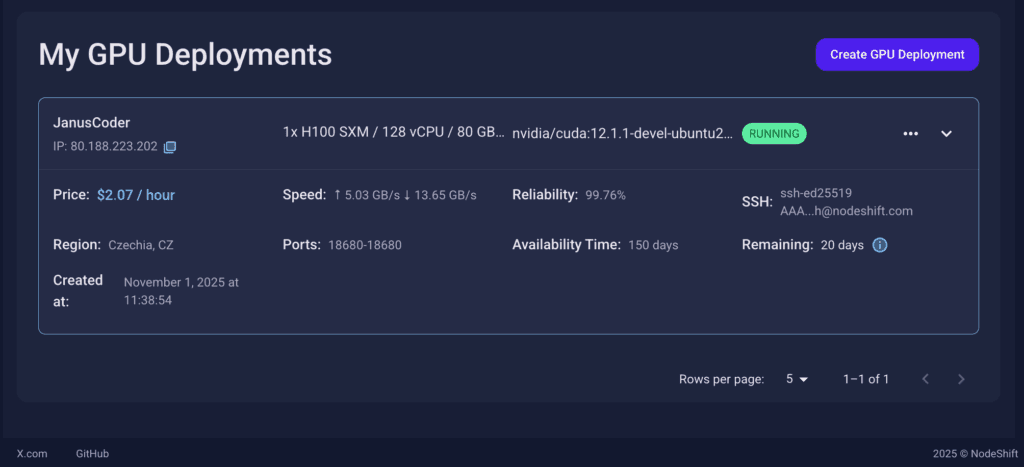

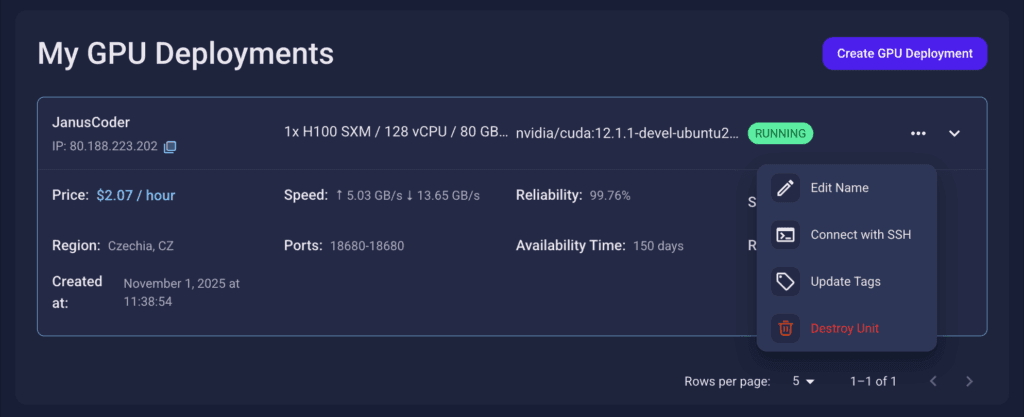

Step 6: Virtual Machine Successfully Deployed
You will get visual confirmation that your node is up and running.
Step 7: Connect to GPUs using SSH
NodeShift GPUs can be connected to and controlled through a terminal using the SSH key provided during GPU creation.

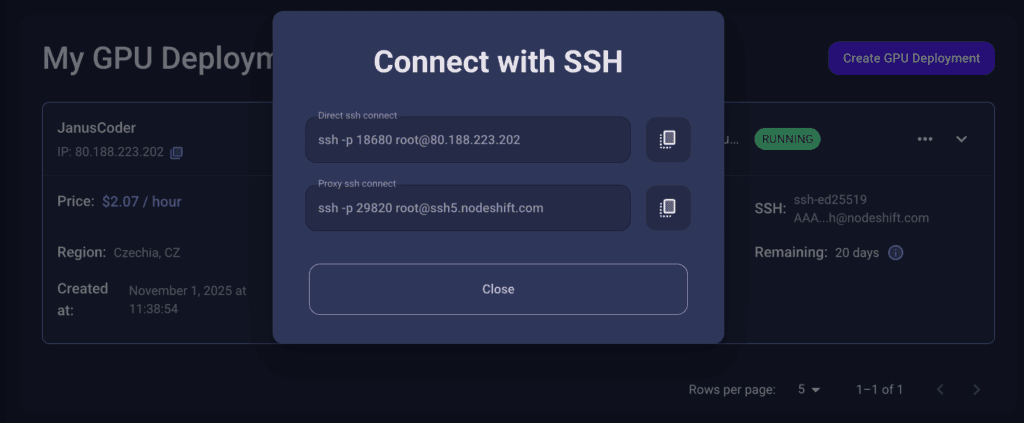

Once your GPU Node deployment is successfully created and has reached the ‘RUNNING’ status, you can navigate to the page of your GPU Deployment Instance. Then, click the ‘Connect’ button in the top right corner.

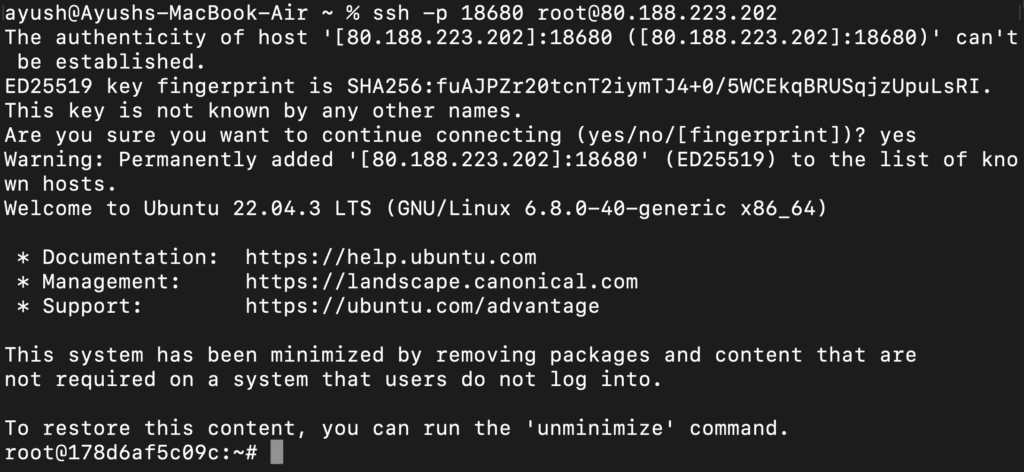

Now open your terminal and paste the proxy SSH IP or direct SSH IP.

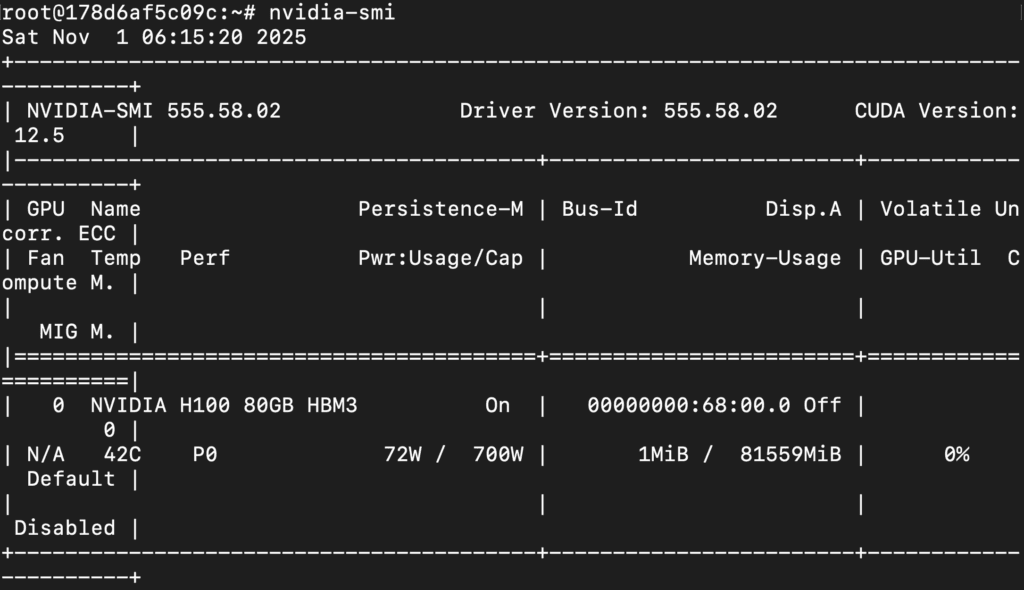

Next, If you want to check the GPU details, run the command below:
nvidia-smi
Step 8: Install Python 3.11 and Pip (VM already has Python 3.10; We Update It)
Run the following commands to check the available Python version.
If you check the version of the python, system has Python 3.10.12 available by default. To install a higher version of Python, you’ll need to use the deadsnakes PPA.

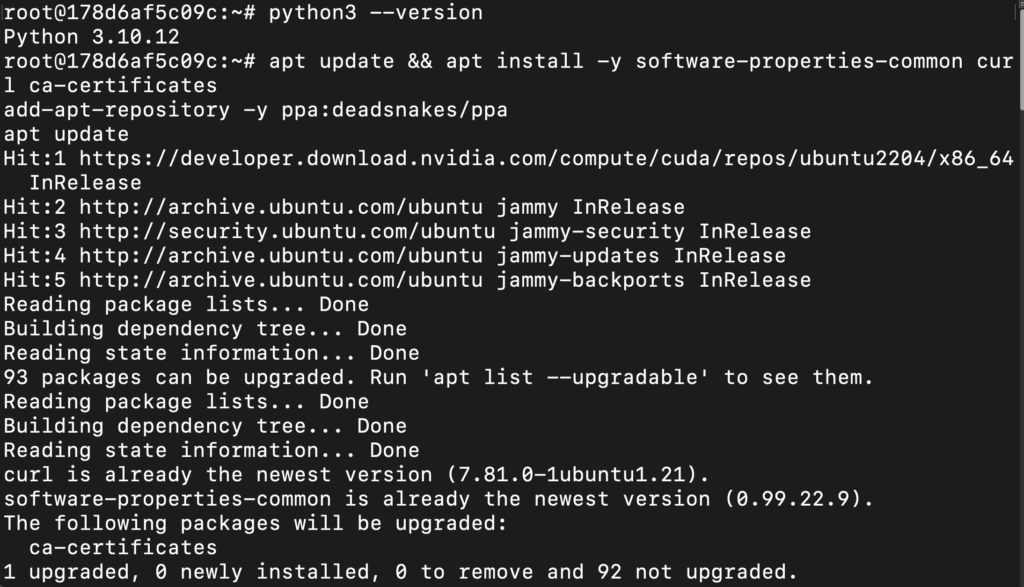

Run the following commands to add the deadsnakes PPA:
apt update && apt install -y software-properties-common curl ca-certificates
add-apt-repository -y ppa:deadsnakes/ppa
apt update

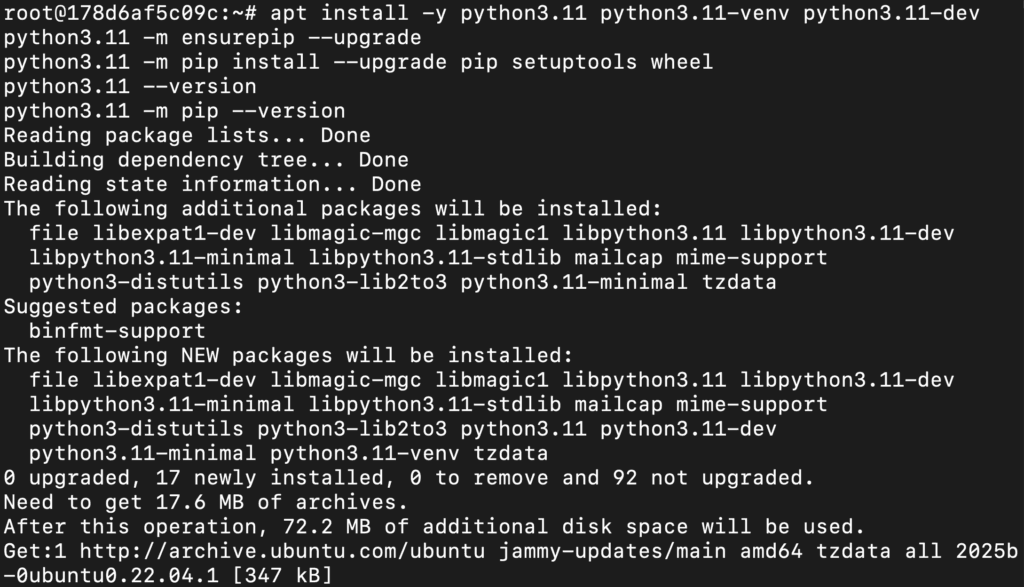

Now, run the following commands to install Python 3.11, Pip and Wheel:
apt install -y python3.11 python3.11-venv python3.11-dev
python3.11 -m ensurepip --upgrade
python3.11 -m pip install --upgrade pip setuptools wheel
python3.11 --version
python3.11 -m pip --version

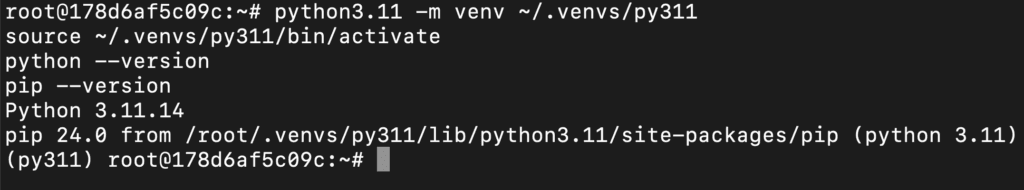

Step 9: Created and Activated Python 3.11 Virtual Environment
Run the following commands to created and activated Python 3.11 virtual environment:
python3.11 -m venv ~/.venvs/py311
source ~/.venvs/py311/bin/activate
python --version
pip --version

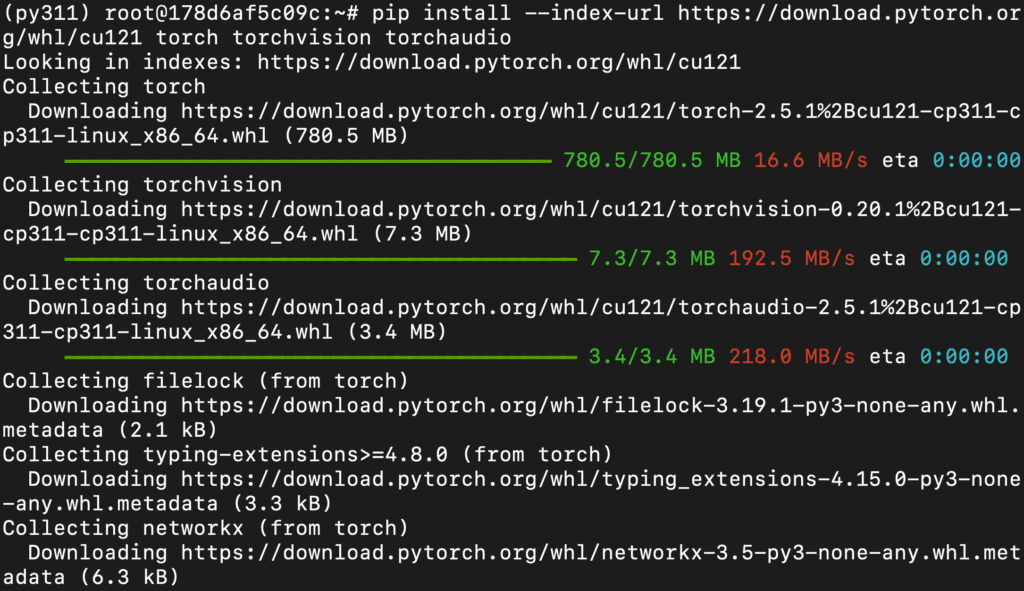

Step 10: Install PyTorch for CUDA
Run the following command to install PyTorch:
pip install --index-url https://download.pytorch.org/whl/cu121 torch torchvision torchaudio

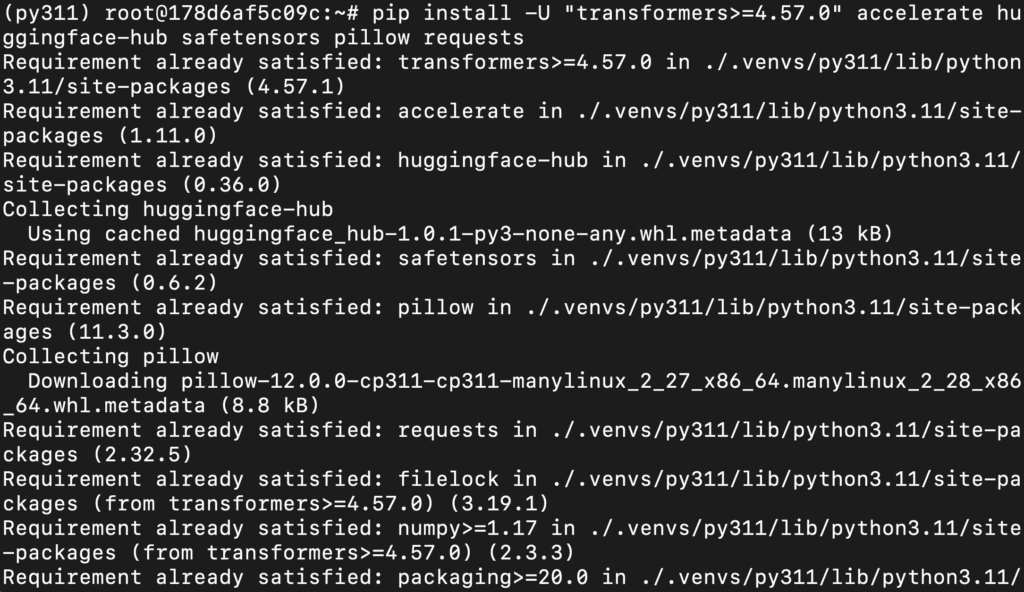

Step 11: Install Core Libs
Run the following command to install core libs:
pip install -U "transformers>=4.57.0" accelerate huggingface-hub safetensors pillow requests

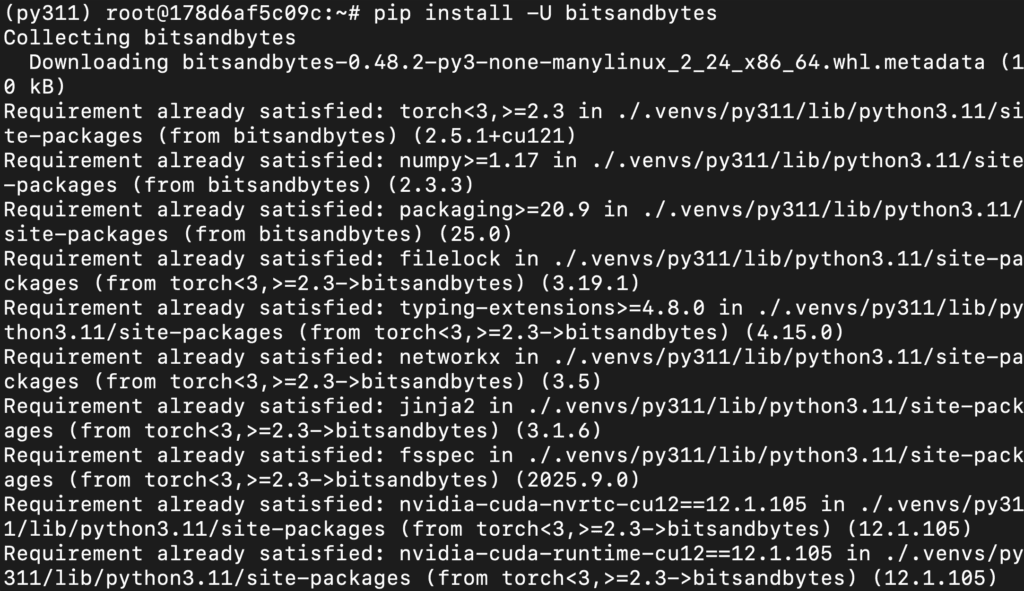

pip install -U bitsandbytes

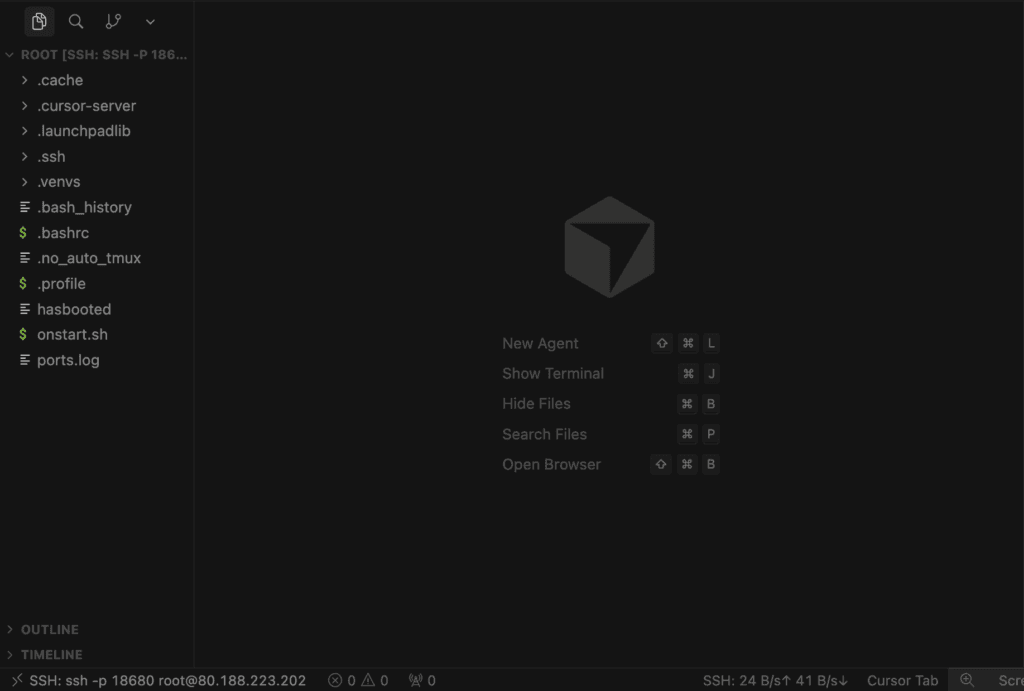

Step 12: Connect to Your GPU VM with a Code Editor
Before you start running model script with the JanusCoder model, it’s a good idea to connect your GPU virtual machine (VM) to a code editor of your choice. This makes writing, editing, and running code much easier.
- You can use popular editors like VS Code, Cursor, or any other IDE that supports SSH remote connections.
- In this example, we’re using cursor code editor.
- Once connected, you’ll be able to browse files, edit scripts, and run commands directly on your remote server, just like working locally.
Why do this?
Connecting your VM to a code editor gives you a powerful, streamlined workflow for Python development, allowing you to easily manage your code, install dependencies, and experiment with large models.

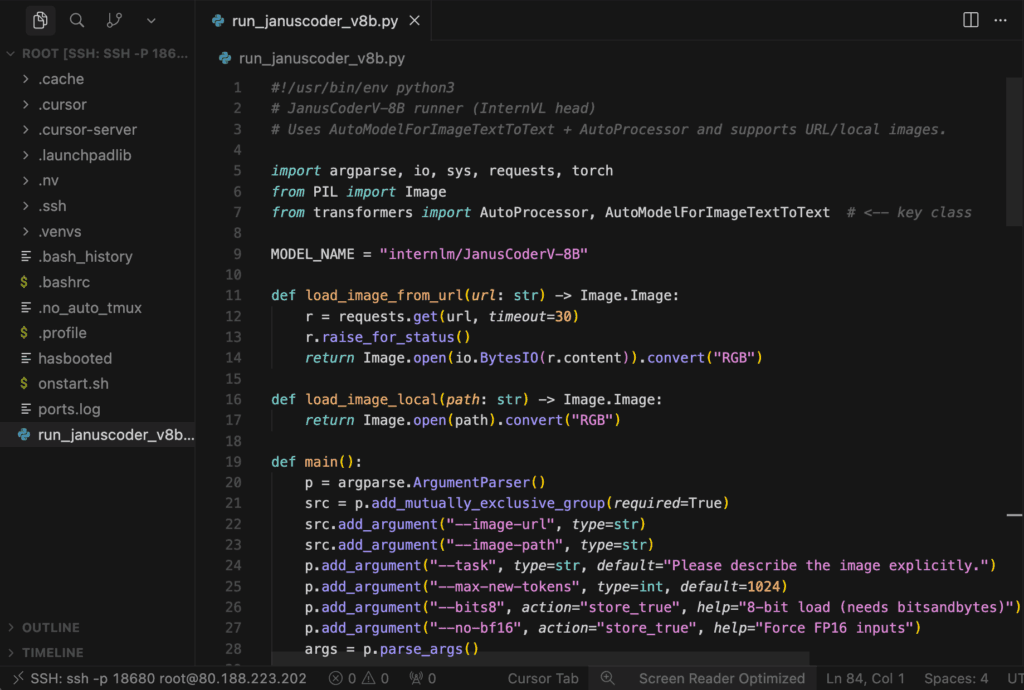

Step 13: Create the Script
Create a file (ex: #run_januscoder_v8b.py) and add the following code:
#!/usr/bin/env python3
# JanusCoderV-8B runner (InternVL head)
# Uses AutoModelForImageTextToText + AutoProcessor and supports URL/local images.
import argparse, io, sys, requests, torch
from PIL import Image
from transformers import AutoProcessor, AutoModelForImageTextToText # <-- key class
MODEL_NAME = "internlm/JanusCoderV-8B"
def load_image_from_url(url: str) -> Image.Image:
r = requests.get(url, timeout=30)
r.raise_for_status()
return Image.open(io.BytesIO(r.content)).convert("RGB")
def load_image_local(path: str) -> Image.Image:
return Image.open(path).convert("RGB")
def main():
p = argparse.ArgumentParser()
src = p.add_mutually_exclusive_group(required=True)
src.add_argument("--image-url", type=str)
src.add_argument("--image-path", type=str)
p.add_argument("--task", type=str, default="Please describe the image explicitly.")
p.add_argument("--max-new-tokens", type=int, default=1024)
p.add_argument("--bits8", action="store_true", help="8-bit load (needs bitsandbytes)")
p.add_argument("--no-bf16", action="store_true", help="Force FP16 inputs")
args = p.parse_args()
use_bf16 = (not args.no_bf16) and torch.cuda.is_available() and torch.cuda.is_bf16_supported()
input_dtype = torch.bfloat16 if use_bf16 else torch.float16
print(f"torch={torch.__version__} | cuda={torch.cuda.is_available()} | bf16_ok={use_bf16} | dtype={input_dtype}")
print("Loading processor …")
processor = AutoProcessor.from_pretrained(MODEL_NAME, trust_remote_code=True)
print("Loading model …")
load_kwargs = dict(device_map="auto", trust_remote_code=True)
if args.bits8:
load_kwargs["load_in_8bit"] = True
else:
load_kwargs["dtype"] = input_dtype
model = AutoModelForImageTextToText.from_pretrained(MODEL_NAME, **load_kwargs).eval()
# Build messages with either URL or PIL image
content = []
if args.image_url:
content.append({"type": "image", "url": args.image_url})
else:
pil = load_image_local(args.image_path)
content.append({"type": "image", "image": pil})
content.append({"type": "text", "text": args.task})
messages = [{"role": "user", "content": content}]
print("Tokenizing …")
inputs = processor.apply_chat_template(
messages,
add_generation_prompt=True,
tokenize=True,
return_dict=True,
return_tensors="pt",
)
# Move input tensors to model device/dtype
dev = next(iter(model.parameters())).device
for k, v in list(inputs.items()):
if torch.is_floating_point(v):
inputs[k] = v.to(dev, dtype=input_dtype)
else:
inputs[k] = v.to(dev)
print("Generating …")
with torch.inference_mode():
out_ids = model.generate(**inputs, max_new_tokens=args.max_new_tokens, do_sample=False, use_cache=True)
prompt_len = inputs["input_ids"].shape[1]
text = processor.decode(out_ids[0, prompt_len:], skip_special_tokens=True)
print("\n" + "=" * 80 + "\nOUTPUT:\n" + "=" * 80)
print(text)
if __name__ == "__main__":
main()
What This Script Does
- Loads JanusCoderV-8B with the correct InternVL head (
AutoModelForImageTextToText) and its processor.
- Accepts either an image URL or a local image path, plus a custom instruction/task.
- Builds a multimodal chat message (image + text), tokenizes it with the model’s chat template, and moves tensors to the right device/dtype (BF16/FP16 or 8-bit).
- Runs generation (
model.generate) with configurable max_new_tokens, then decodes only the new tokens after the prompt.
- Prints a clean final output (the model’s response) to the console.

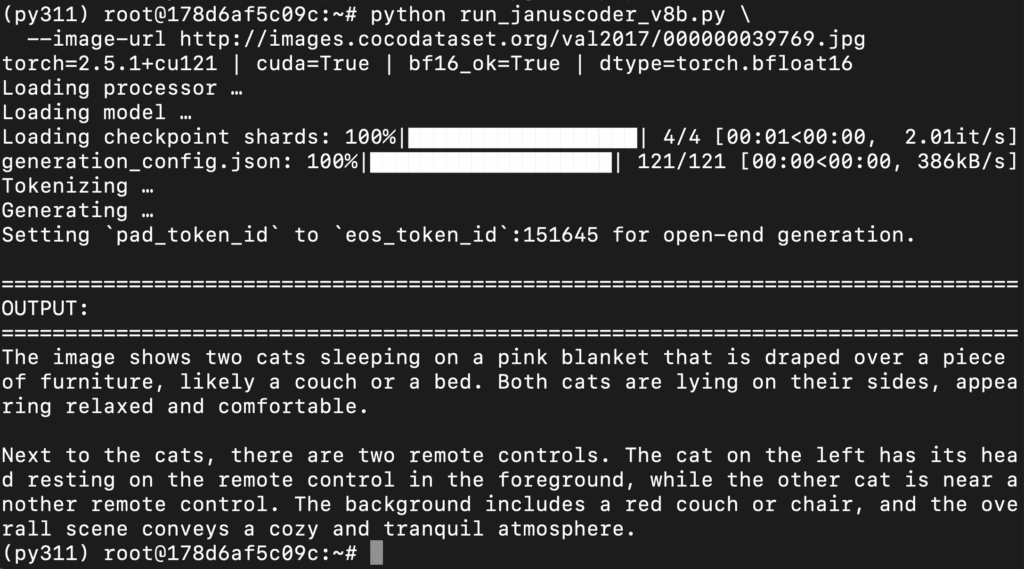

Step 14: Run the Model for a Quick Test
Once everything is installed and the script (run_januscoder_v8b.py) is saved, run the following command to verify that the model works correctly:
python run_januscoder_v8b.py \
--image-url http://images.cocodataset.org/val2017/000000039769.jpg
What This Does
- Loads the JanusCoderV-8B multimodal model (InternVL-based) into GPU memory.
- Downloads and processes the sample COCO validation image.
- Sends the image and the prompt “Please describe the image explicitly.” to the model.
- The model generates a textual description of the image and prints it directly to the terminal.
When you see the generated description printed under the “OUTPUT” section, your JanusCoderV-8B setup is confirmed to be working properly.

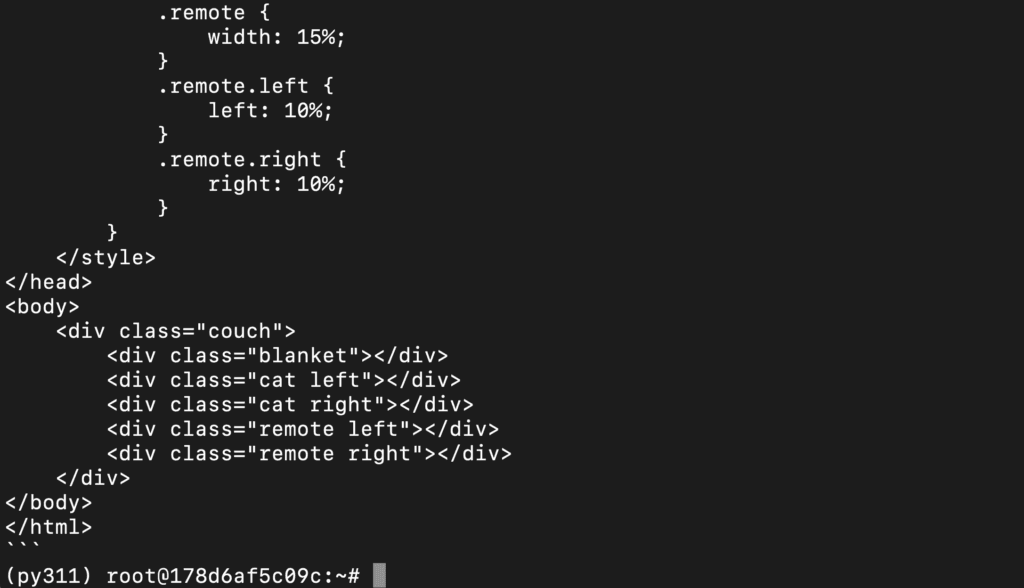

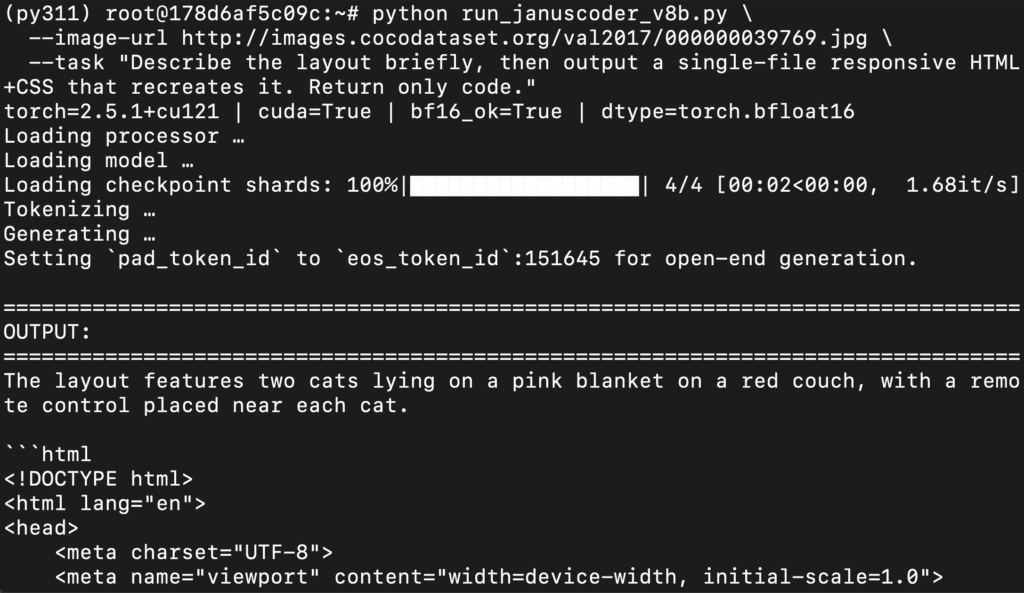

Step 15: UI → HTML/CSS (From the Same URL)
Conclusion
JanusCoderV-8B truly stands out as a next-generation visual-programmatic model, seamlessly connecting images, text, and code in one unified workflow.
By following this step-by-step guide, you’ve learned how to:
- Deploy a GPU-powered environment on NodeShift Cloud.
- Set up CUDA, Python, and PyTorch for model execution.
- Install dependencies and configure Transformers (≥4.57.0).
- Run JanusCoderV-8B locally using the AutoModelForImageTextToText pipeline.
With this setup, you can now generate detailed visual descriptions, create UI-to-code conversions, or even perform interactive design edits directly from images.
Whether you’re a developer, designer, or researcher, JanusCoderV-8B opens new possibilities for building intelligent, multimodal coding experiences powered by visual context.
